Powder Handling; -Mixing and Homogenization
Equipment for measuring, grinding, sieving, mixing and homogenizing pharmaceutical, food and
cosmetic powders, in several sizes, with a design that meets individual needs.

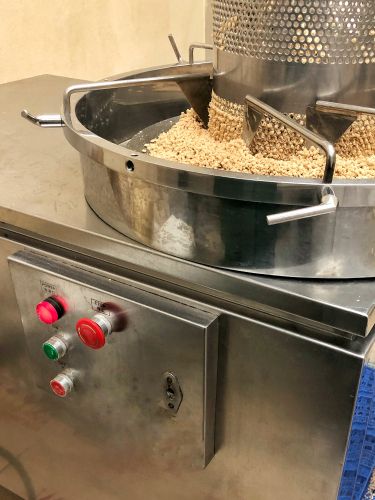

Vibrating sieve
Screening equipment to meet GMP requirements
Screening of pharmaceutical, food and cosmetic raw materials with vibrating equipment on request
Screen inserts with hole size on request
Adjustable vibrator motor position to change vertical / horizontal movement
Frequency converter speed control
Fully enclosed, dust-free design
Operation with individual or in-line control
ATEX version on request, nitrogen purge
Capacity with different machine sizes: 50-1500 kg / h
Screen size on request (0.2 – 3.0 mm)
Sieve material: stainless steel 304
Machine construction material: 304 stainless steel everywhere
Voltage (V) Frequency (Hz): 240V / 60Hz
Vibromotor power: 1.5 kW
Vibromotor speed: 1,500 rpm
Gasket material: Silica
Warranty: 12 months for all parts
Grinder
Pharmaceutical grinding equipment meeting GMP requirements
For grinding raw materials, depending on the particle size in several types:
Hammer grinder
Conical grinder (with two-stage cone on request)
Oscillating grinder
Screen inserts with hole size on request
Frequency converter speed control
Fully enclosed, dust-free design
Operation with individual or in-line control
ATEX version on request, nitrogen purge
Capacity with different machine sizes: 20-1400 kg / h
Mixer, homogenizer
GMP compliant pharmaceutical equipment
Suitable for mixing and homogenizing powders, granules and liquids
PLC control for setting and logging operating parameters
Operation monitoring
Space Defense
ATEX version on reques
Quick mixer, wet granulator
Pharmaceutical rapid mixing and wet granulation equipment that meets GMP requirements
Cylindrical or conical cauldron design
Double-walled (heated) cauldron on request
Vacuum / pressure resistant design
Several types of interchangeable chopping knives
Frequency converter speed control
Trough the Wall" installation option
30-90% boiler volume utilization
Fully automatic PLC control with multilevel access
ATEX version on request
Equipped with CIP washer on request
Laboratory, pilot and plant size equipment with interchangeable cauldrons (0.5 – 500l)
